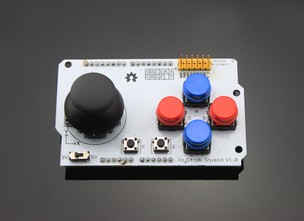

Arduino joysticks expansion board ElecFreaks Joystick shield V1.0
Description:
Arduino JoyStick Shield with a cross PS2 joystick with buttons, as well as four radio buttons, 2 small buttons. Provides for the Arduino and the key input extension joystick. On-board switch can switch between 3.3V and 5V, 3.3V can use this module for other microcontroller platforms, such as the STM32.
All signals are transferred through standard pin 2.54 leads to facilitate the transfer to other microcontroller platforms.
Arduino test case Demo
/*********************************************************************
** Device: Joystick **
** File: EF_Joystick_Test.c **
** **
** Created by ElecFreaks Robi.W /10 June 2011 **
** **
** Description: **
** This file is a sample code for your reference. **
** **
** Copyright (C) 2011 ElecFreaks Corp. **
*********************************************************************/
iint FirstShotX , FirstShotY;
void setup()
{
for(int i=0; i<19; i++)
{
pinMode(i, INPUT);
digitalWrite(i, 1);
}
Serial.begin(9600);
FirstShotX = 0;
FirstShotY = 0;
}
void loop(){
int i, someInt, flag = 0;
for(i=4; i<11; i++)
{
someInt = digitalRead(i);
if(someInt == 0)
{
flag =1;
break;
}
}
if(flag == 1)
{
switch(i)
{
case 4: Serial.println("--------> Button A"); break;
case 5: Serial.println("--------> Button B"); break;
case 6: Serial.println("--------> Button C"); break;
case 7: Serial.println("--------> Button D"); break;
case 8: Serial.println("--------> Button E"); break;
case 9: Serial.println("--------> Button F"); break;
case 10: Serial.println("--------> Button KEY"); break;
default: break;
}
flag=0;
}
int sensorValue = analogRead(A0);
if(FirstShotX == 0)
{
FirstShotX = sensorValue;
Serial.print("FirstShotX = ");
Serial.println(FirstShotX);
}
Serial.print("X = ");
Serial.println(sensorValue - FirstShotX);
sensorValue = analogRead(A1);
if(FirstShotY == 0)
{
FirstShotY = sensorValue;
Serial.print("FirstShotY = ");
Serial.println(FirstShotY);
}
Serial.print("Y = ");
Serial.println(sensorValue - FirstShotY);
delay(200);
}
|
|

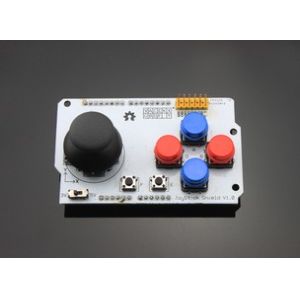

3.3V / 5V ElecFreaks Arduino Module / Modules Images
|
