products Features:

1.There are four fuctions of the board : 1)USBASP 2)USB to 232 3)STK500 4) AVRISPmkII
2.You can undate the board from software not need other cable .
3.this board can gurad your PC from the high voltage , Because it with 500mA fuse for overcurrent protection.
4.with 2pcs 3.6V VR-tube compatable with electrical level , avoid hardwired instability.
5.when you work with as STK500 or AVRISPmkII, you can download with AVRStudio.

[Supports fellows IC model ]

AT89S51, AT89S52, AT89S8252
ATTiny12(L), ATTiny13(V), ATTiny15(L), ATTiny24(V), ATTiny25(V)
ATTiny26(L), ATTiny2313(V), ATTiny44(V), ATTiny45(V), ATTiny84(V)
ATTiny85(V), AT90S2313(L)AT90S2323(L), AT90S2343(L), AT90S1200(L)
AT90S8515(L), AT90S8535(L), ATMEGA48(V), ATMEGA8(L), ATMEGA88(V),
ATMEGA8515(L), ATMEGA8535(L), ATMEGA16(L), ATMEGA162(V)
ATMEGA163(L), ATMEGA164(V), ATMEGA165(V), ATMEGA168(V)
ATMEGA169(V), ATMEGA169P(V), ATMEGA32(L), ATMEGA324(V),
ATMEGA325(V), ATMEGA3250(V), ATMEGA329(V), ATMEGA3290(V),
ATMEGA64(L), ATMEGA640(V), ATMEGA644(V), ATMEGA645(V),
ATMEGA6450(V), ATMEGA649(V), ATMEGA6490(V), ATMEGA128(L),
ATMEGA1280(V), ATMEGA1281(V), ATMEGA2560(V), ATMEGA2561(V),
AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2(B), AT90PWM3(B)

[user manual ]
1.J1 jump line used for power supply for board.
2.J4 jump line use for updated the software or speed up it for download
3.please connect J4 before USB port when you update .
4.please install Update.bat with you Update .

package include :

1.USBASP cable 1pcs
2.FC-10P cable 1pcs (use for ISP download )

stk500 programmer

atmel avr stk500

Atmel programmer

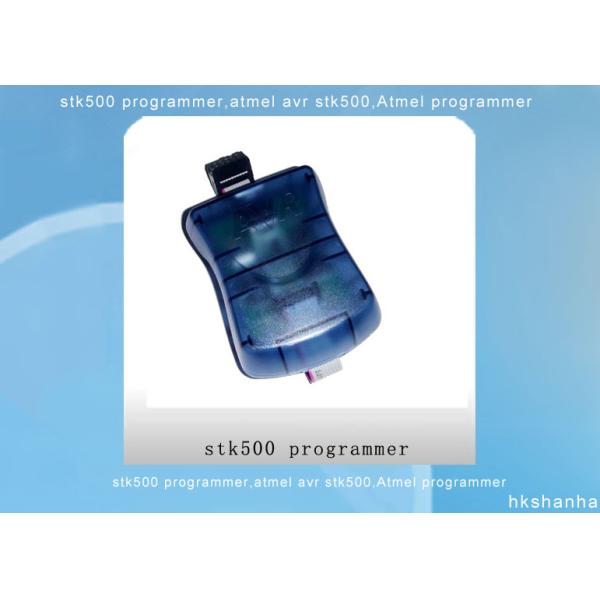

stk500 IC electronic components programmer,atmel avr stk500,Atmel programmer Images
