GD-102 GPS Module Get Direction + Data Logger
Can set 5 Destination Points (Home/Building/Car/Travel/My Favorite)
Display directions by picture (Can display 16 directions)
Data Logger Feature, Save 45, 000 points
Route Navigation (Point by Point)
Move Prompt Information (Speed, Distance, Time)
Maximum Destination Distance Showing (0~999.99 )
3 Kinds of Distance Unit: km/mi/nm for setting
Time Zone Setting/ Date and time display
End User changeable Battery Design: AAA x 2
Alkaline battery life can last for 15 hours.
Permit Manual Setting of Destination Coordinates
Battery Power Level Indication
Backlight Time Setting
Power-saving mode setting
Water resistant: IPX4
Electricity
GPS chipset: High sensitivity GPS solution
Frequency: L1, 1575.42 MHz
Code: C/A Code
Channels: 48 Acquisition and 12 Tracking channels
Sensitivity: Tracking:-161dBm
Display
Display Size: 96x65 dots, 1.00 x 0.66 (H x W inch.)
Display type: Black & White LCD
Pixel H*W: 96x65 dot Matrix
Power
Battery Type: AAA battery X 2
Battery Life: Up to 15 hours
Appearance
Dimension: 68X 58 X 22 (L x W x H, mm)
Weight: 68grams, (Including batteries)
COORDINATES SYSTEM
COORDINATES SYSTEM: Default:WGS-84
Dynamic Condidtion
Accelerate Speed: Less than 4G
Height Limit: 18, 000 Meter
Speed Limit: 515 m/sec
GPS Fix Time
Hot Start: Average 1.5 second
Warm Start: Average 32 second
Cold Start: Average 34 second
Reacquisition: Average 0.1 second
Antenna
GPS antenna: 12 X 12 mm, Patch Antenna
Accurancy
Velocity: 0.1 m/sec
Time Accuracy: 1 us synchronized to GPS time
Temperature
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Humidity Range: 5% to 95% non-condensing
Certification
FCC: USA (Covers requirements for CANADA ICES-003)
CE: Europe
Product Tags:
|
|

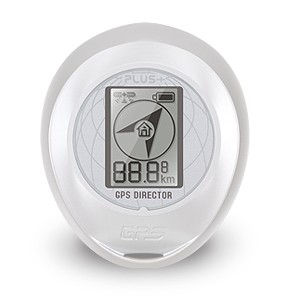

GD-102 GPS Module Get Direction + Data Logger Images
|
