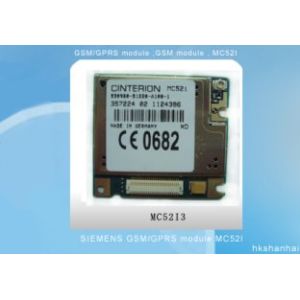

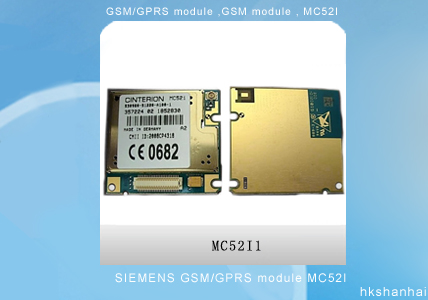

SIEMENS GSM GPRS module MC52I

SIEMENS GSM/GPRS module MC52I

Detailed Product Description

Place of Origin: China (Mainland)
Brand Name: CINTERION
Model Number: MC52I
Best quality

GENERAL FEATURES
1, GSM Dual-Band 900, 1800 MHz
2, 3GPP Release 98
3, GPRS multi-slot class 10
4, Compliant to GSM phase 2/2+
5, Output power:
- Class 4 (2W) for GSM900
- Class 1 (1W) for GSM1800
6, SIM Application Toolkit
7, Control via AT commands
(Hayes, 3GPP TS 27.007 and 27.005)
8, TCP/IP stack access via AT commands
9, Internet Services TCP server/client, UDP,
ICMP, DNS, HTTP, FTP, SMTP, POP3
10, Supply voltage range 8 .. 30 V
11, Operating temperature: -25°C to +75°C
12, Dimensions: 65 x 74 x 33 mm
13, Weight 130 g
14, RoHS and EuP compliant

SPECIFICATIONS
1, GPRS class 10
DL: max. 85.6 kbps, UL: max. 42.8 kbps
Mobile Station Class B
2, CSD data transmission
up to 14.4 kbps, V.110, non-transparent
3, USSD support
4, SMS text and PDU mode, cell broadcast
5, Fax Group 3, class 1 and class 2
6, High quality voice support for handset,
headset and handsfree operation
7, FR, HR, EFR and AMR speech codec support
8, Integrated TTY modem

SPECIAL FEATURES
1, Serial interface modem driver for Microsoft Windows 7, Windows XP and Windows Vista
2, Firmware update via serial interface
3, Real time clock with alarm functionality

MC52I in Cinterion can be available from our company.There are other Cinterion module in our company, for example MC37I.

GSM/GPRS module

GSM module

MC52I
