Arduino Compact size bluetooth bee RF Wireless Modules

Arduino Compact size bluetooth bee RF Wireless Modules

Description:
Bluetooth Bee Bluetooth wireless data transmission module to adopt XBEE design, compact size, to compatible XBEE the docking, for a variety of 3.3V microcontroller system, the module can use the AT command set the baud rate matching the password the user, the default baud rate: 9600, slave mode, matching 1234.

• The modules use a 3.3V power supply. • Never use more than 3.3V power supply, this may damage the module • modify the baud rate is effective in the restart of the module • Bluetooth pairing code is 1234
• The default baud rate of 9600
With recommendations:

1.Bee Adapter, convenient link Bluetooth Bee and PC to exchange data
2.Sensor Shield, used to plug the Bluetooth Bee to the Arduino, convenient the arduino Control Bluetooth data
(3) Bluetooth adapter, used for Bluetooth and the Bluetooth Bee, from the device matching.

Comes with a highly efficient on-board antenna, antenna exposed to the better signal quality emission farther, transparent serial to Bluetooth adapter with a variety of paired Bluetooth phone. To facilitate user-friendly design for the secondary development.

Test the module with the market all the Bluetooth adapter paired (with Bluetooth-enabled laptop and cell phone)

wireless audio module

usb wireless module

wireless modules

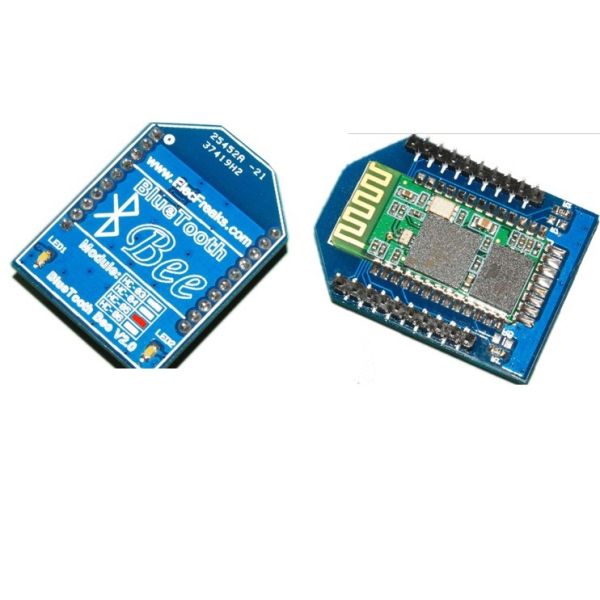

Arduino Compact size bluetooth bee RF Wireless Modules Images
